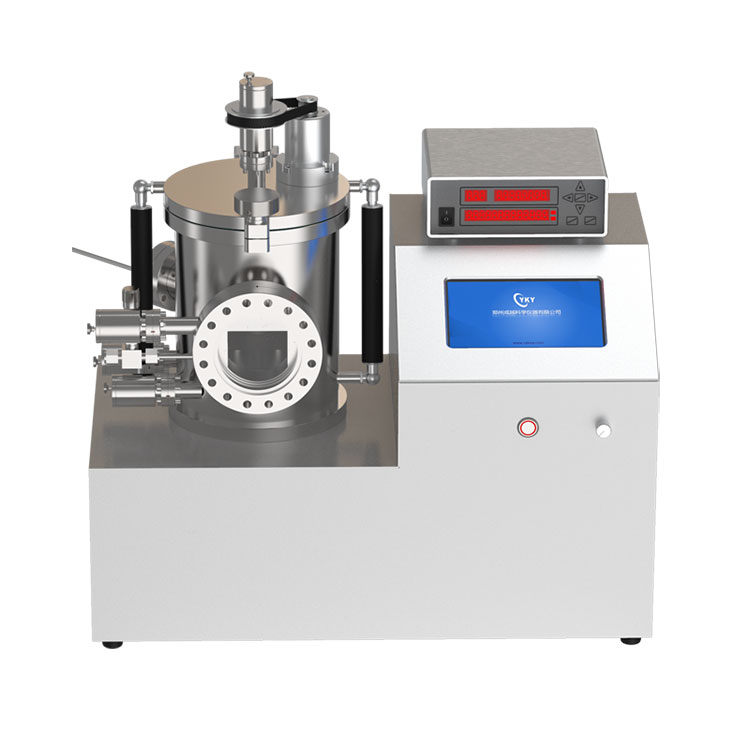

Desktop dual-source thermal evaporation coater

    Desktop dual-source thermal evaporation coater is a small desktop thermal evaporation coater ,which is installed with double evaporation source, and each evaporation is separately supplied with power,which  can be opened alternately or simultaneously

Desktop dual-source thermal evaporation coater is a small desktop thermal evaporation coater ,which is installed with double evaporation source, and each evaporation is separately supplied with power,which  can be opened alternately or simultaneously; Each one of them can provide a maximum of 100A coating current,the maximum evaporating temperature up to 1800℃,and can meet the evaporation of a variety of common metal and part of non-metal ,therefor it can be widely used in the preparation of electrode and organic light-emitting LED. The vacuum chamber is made of stainless steel and has been degassed before delivery. It can reach the limit vacuum of 5x10-5Pa with the molecular pump group, which can meet the vacuum environment required by the evaporation of most materials. The two groups of evaporation sources are placed symmetrically, and each evaporation source has a separate baffle to ensure that the coating process is not polluted.

thermal evaporation coater

thermal evaporation coater technical parameter:

Product Name

Desktop dual-source thermal evaporation   coater

Product Model

CY-EVP170S-2S-A

Installation   Condition

1Working   environment temperature: 25±15℃,humidity:   55%Rh±10%Rh

2Equipment   power supplyAC220V50Hz must be well grounded

3Rated power2500w

4Equipment for   gas The equipment   chamber should be filled with argon gas for cleaning. The customer should   prepare argon gas with purity ≥99.99%.

5Table size   requirements: 600mm×600mm×700mmbearing capacity ≥ 70kg

6The position   should be well ventilated and cooled.

Technical   Indicators

1、  Number of   evaporation sources: 2, each evaporation source is equipped with baffle;

2、 Evaporation source   voltage: 10V

3、 The evaporation current   is continuously adjustable from 0 to 100A

4、 With two tungsten boat,   two tungsten basket;

5、  Stainless steel   rotating upper sample table, diameter of 60mm;

6、  The distance   between the sample platform and the evaporation source is adjustable from 60   to 100mm;

7、 The vacuum cavity is a   stainless steel cavity with an outside diameter of 170mm ,  an inside diameter 160mm and a height of   210mm;

8、 The air pumping interface   of the vacuum chamber is KF40;

9、 Air intake interface is   1/4 inch double ferrule joint ,stainless steel fine-tuning   valve is provided by default to adjust the air intake;

10、 Touch screen is 7inch   color touch screen;

11、 Adjustable sputtering current   sputtering   safety current value and safety vacuum value can be set

12、  safety protection:   over current, vacuum is too low automatically cut off the sputtering current;

13、 Ultimate vacuum1Pa(matching double stage   rotary vane pump)

14、 Vacuum measurement is Parana   vacuum gauge the   range is1105Pa

Notice

1In order to give full   play to the vacuum performance of the cavity, it is recommended to use it   with molecular pump group

Optional accessory

Film

thickness Monitor

1Film thickness resolution0.0136Åaluminum

2Accuracy of film   thickness ±0.5%it depends on process   conditions, especially sensor position, material stress, temperature and   density

3Measuring speed100ms to 1s per times measurement range can be   set 500000Åaluminum

4Standard sensor crystal6MHz

5Suitable for wafer   frequency6MHz

suitable for wafer sizeΦ14mm

mounting flangeCF35

Another   Accessory

1tungsten boat, tungsten   basket;

2Organic evaporation   source (including quartz boat and tungsten wire heating source)

3CY-CZK103 series high   performance molecular pump set(including composite vacuum gauge, measuring   range 10-5Pa~105Pa);

CY-GZK60 series small molecular pump set(including   composite vacuum gauge, measuring range 10-5Pa~102Pa)

VRD-4 bipolar rotary vane   vacuum pump

4KF40 Vacuum bellows; The   length can be 0.5m, 1m or 1.5m. KF40 clamp bracket;

5Film thickness meter   crystal oscillator;
