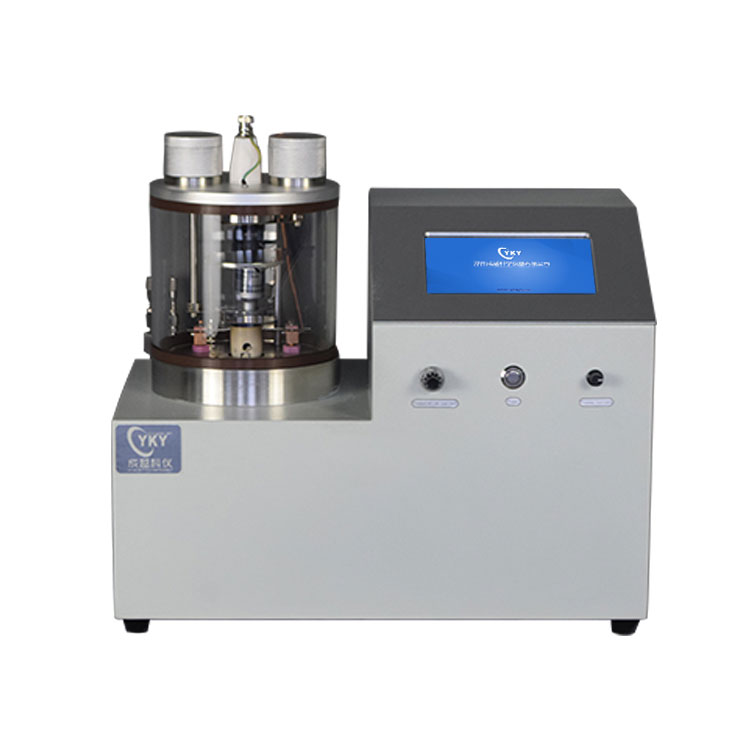

Two in one film coater can meet the requirements of the surface of the scanning electron microscope sample for spraying gold, steaming gold or carbon evaporating, and the production of experimental electrodes for non-conductor materials, and can also be used for the experiments of various new materials in material research.The machine is small in size, saves laboratory space, easy to operate, easy to clean, suitable for beginners, especially suitable for use in laboratories, research institutes, and laboratories of various universities.
Two in one film coater specifications:
Input Voltage | 208 - 240 VAC, single phase, 50/60 Hz
110V version is available with a 1500W transformer. |
Power | < 2000W (including pump) |
Output Power | |
Working chamber | Fused glass tube, 160 mm Dia.×110mm Height |
Coating Head | |
Sample stage | One 50 mm Dia. sample stage, Max. coating area: 45 mm Dia Evaporating fixture is included for coating lightweight metallic material, such as Al, Li, Mg
|
Accessories included
| Double Step Rotary Vane Vacuum Pump (external) with Pirani gauge and Vapor trap eliminates the oil mist are included , which can reach vacuum up to 10-2 torr One solenoid valve is included for automatic air bleed.
|
Gas atmosphere | One needle valve installed to allow Ar gas inlet to achieve better plasma coating |
Target & Evaporating source | One Au target: 50 mm Dia.×0.12 mm, 1pcs is included. One 3 ft carbon fiber (yarn) is included for carbon evaporation ( can not use carbon rod for carbon coating)
|
Overall dimension | L360mm×W300mm×H380mm |
Net Weight | 50 kg |
Warranty | One year limited with lifetime support |
