Automatic Ultrasonic Spray Pyrolysis Coating UnitAutomatic Ultrasonic Spray Pyrolysis Coating UnitAutomatic Ultrasonic Spray Pyrolysis Coating Unit

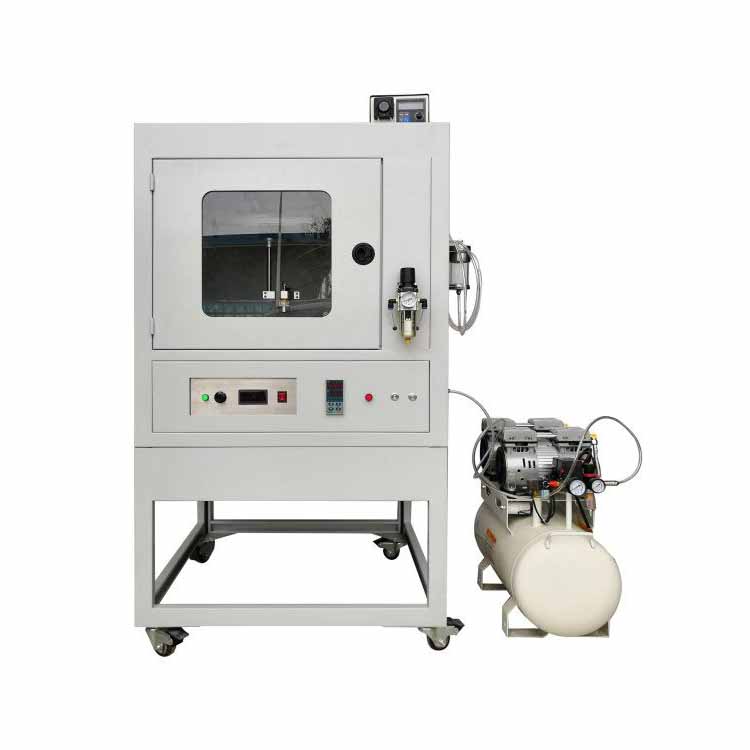

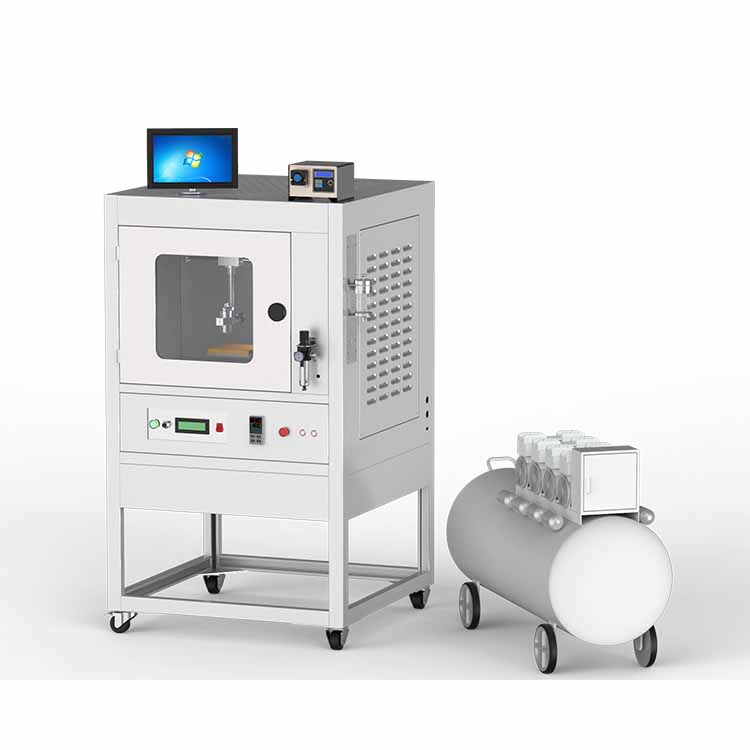

Automatic Ultrasonic Spray Pyrolysis Coating Unit

    This ultrasonic spray pyrolysis equipment is independently developed by our company. It is equipped with a 40KHz 130W ultrasonic atomizer, a PID temperature controlled heating substrate substrate, a high-precision peristaltic pump and a precision program-controlled stepper motor moving mechanism.

Spray pyrolysis film preparation method is to atomize the solution and spray it onto a heated substrate, and then obtain a desired material structure on the substrate. This equipment is an ultrasonic spray pyrolysis equipment independently developed by our company. It is equipped with 40KHz 130W ultrasonic sprayer, PID temperature-controlled substrate heater plate, high precision peristaltic pump and precision programmable stepping motor moving mechanism. The integrated design of the device can accurately control the parameters such as the amount of solution, the speed of the spray particles and the size of the spray particles, and the substrate temperature can also be controlled to meet your various experimental needs.

Application range of Ultrasonic Spray Pyrolysis Coating Unit:

This material preparation method is particularly suitable for the deposition of oxides and has a long history of application in the preparation of transparent electrodes. This method is now widely used in the preparation of perovskite solar cells.

Technical parameters of Ultrasonic Spray Pyrolysis Coating Unit:

Item

Detail

Model

CY-USP130-B

Supply voltage

AC220V, 50Hz

Max power

3.5KW (including compressor + peristaltic pump 1.5KW)

Ultrasonic sprayer

40KHz 130W

Liquid viscosity

1-50mPa·s (cP)

Nozzle stroke

X-Y-Z axis up to 190mm

Moving speed

10-180mm/min (x-axis direction)  10-180mm/min (Y-axis direction)

Substrate heater plate

150mm×150mm

Max temperature

500

Temperature control method

AI-PID temperature control

dispensing tank capacity

50mL / 250mL (two containers included)

Peristaltic pump dispensing rate

0.006-41mL/min

Control method

Industrial computer + instrument panel

Overall size

850mm×850mm×1450mm


Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will periodically improve and modify the website information, without prior notice, please understand.
