Home > Products > Spin coater
Purifying vacuum spin coater with two working stationPurifying vacuum spin coater with two working stationPurifying vacuum spin coater with two working station

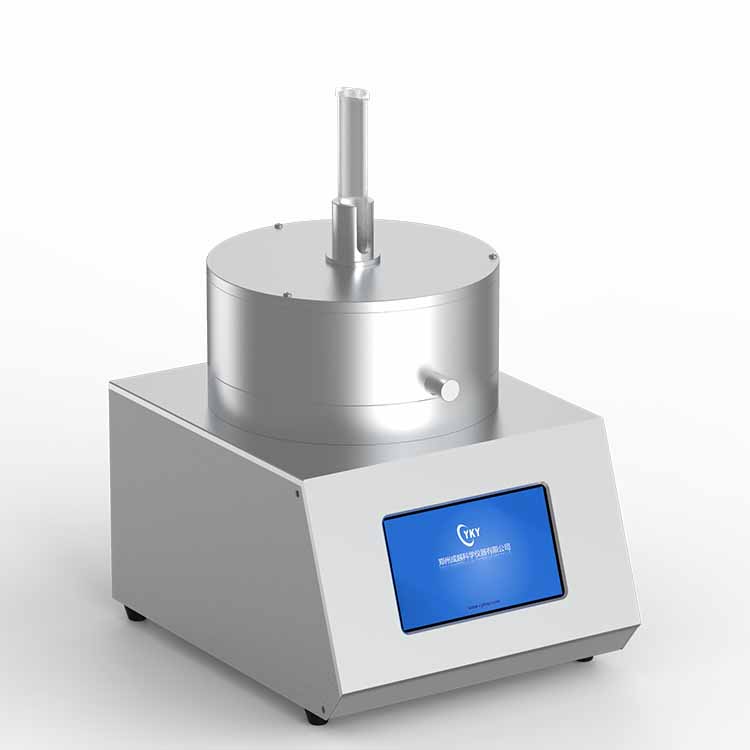

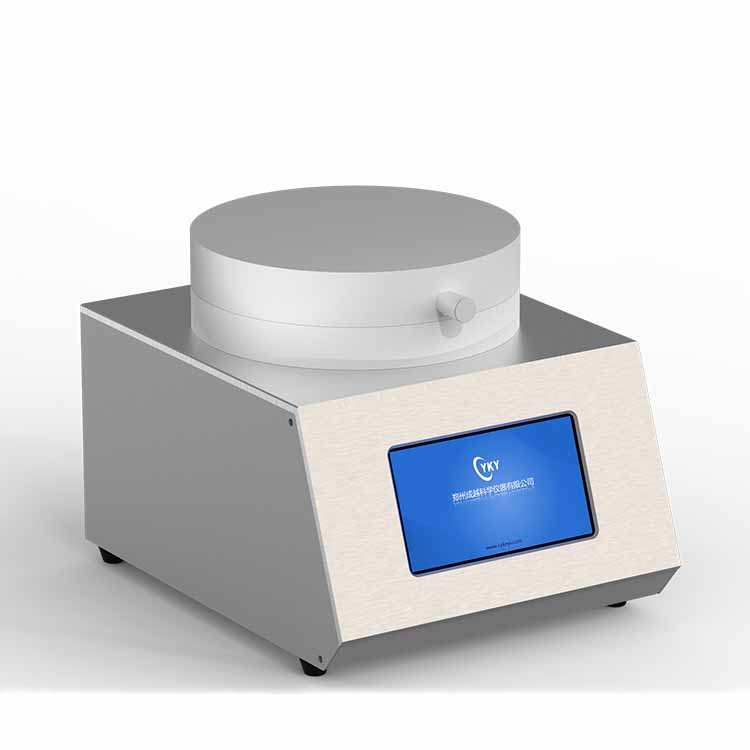

Purifying vacuum spin coater with two working station

    Purifying vacuum spin coater has 100 grade purifying effect, which can remove the dust to avoid coating sample from pollution.

Features of Purifying vacuum spin coater:

1.100 grade purifying effect, can remove the dust to avoid coating sample from pollution

2.Equipped with LED lighting with programmable control, easy operate

3.Time-coating programmable control

4.LCD 7" touch panel, simple and easy operate.

Technical parameter of Purifying vacuum spin coater:

Model No.

CY-GKF411

Coating time

1-99S

Time accuracy

±5%

Coating speed

0-8000RPM

Speed accuracy

±3%

Working station

Two station

Purifying Effect

100 grade(USA Federal Standard)

Operating area wind speed

0.3-0.5m/s

Wafer dimension

10mm-100mm wafer or other material

System control

PID Programmable control

Outer dimension

800x680x1700mm


Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will periodically improve and modify the website information, without prior notice, please understand.
