Vacuum induction melting furnace is one of the most widely used equipments in vacuum metallurgy field. It has been proved that a considerable proportion of the alloys and special steels needed by aerospace, missile, rocket, atomic equipment and electronic industries are produced by vacuum induction melting furnace. For example, when the nickel base, cobalt base and iron base superalloys are smelted by vacuum induction melting furnace, their thermal and mechanical properties are significantly improved. Like stainless steel, heat-resistant steel, ultra-high strength steel, tool steel, bearing steel, as well as magnetic materials, elastic alloys, expansion alloys, almost all use vacuum induction melting furnace to melt, in order to ensure material properties and quality
Technical parameters of vacuum induction melting furnace:

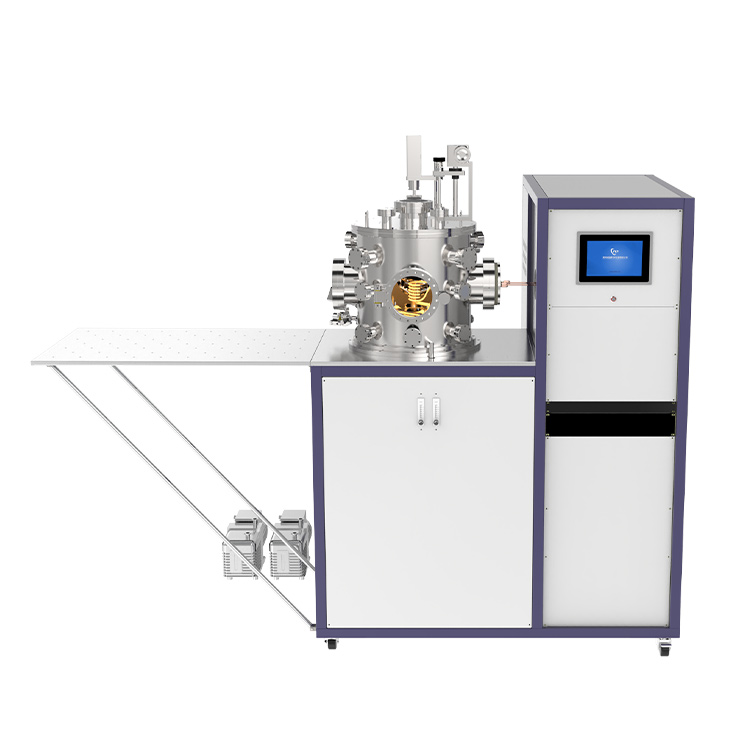

Medium frequency induction melting furnace CY-IM400-L |
Induction power supply | Frequency | 5-30kHz(intermediate frequency) |
Power | 45KW |
Vacuum chamber | Cavity material | Material: 304 stainless steel Structure: Double layer sandwich structure with water cooling Size: φ400mm x H400mm Quartz observation window: φ120mm The upper cover is equipped with a feed port |
Cooling system | Water cooled electrode, water cooled chamber, Water cooled mold these should be included |
Viewing window | The main observation window diameter is φ120mm |
Lifting platform | 0 to 40mm lifting range |
Accessories with | Tungsten Carbide thermocouple and vacuum funnel |
Water cooling interface | φ8mm quick plug |
Vacuum interface | CF160 |
Exhaust port | KF16 |
Power supply | AC 220V 50 / 60Hz |
Gating system | The right side of the cavity is equipped with a dumping device, which can be poured after melting Casting mold size: φ60mm x 89mm Mold type: water cooled copper mold |
Vacuum system | Bipolar vane pump pump speed 4.4L/s |
Charging tank | After metal A is melted, block B is added to the melt of A without opening the furnace door |
Induction heating system | Induction coil: Inner diameter 60mm, height 80mm |
Temperature control | Automatic control, we have a foot pedal can also achieve manual control |
Other | Supply voltage | AC220V 50Hz or three-phase 380V |
Total power | Suggested power |
Total size | 1550mm x 700mm x 1400mm |
Vacuum induction melting furnace video:
