Electric arc melting furnace with electromagnetic stirring

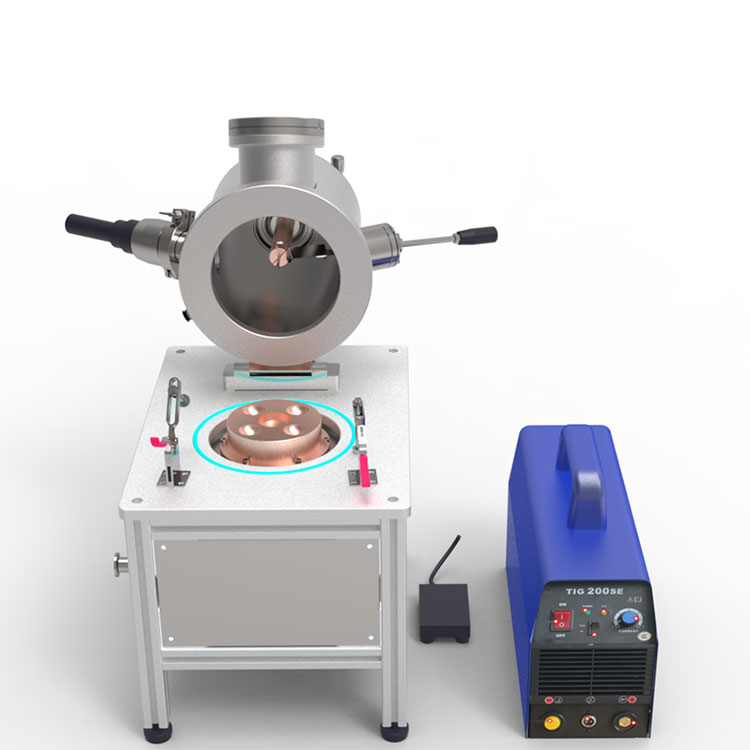

    Electric arc melting furnace with electromagnetic stirring (Quartz chamber) is a cheap and small vacuum arc melting furnace with tungsten electrode and water-cooled copper crucible. The melting temperature of the equipment can exceed 3000, and then the temperature is quickly reduced. The transparent quartz chamber can be used to observe the melting of the sample at 360 degrees. CY-MSM-130B is a high quality and inexpensive experimental tool for sample smelting, heat treatment, and the phase diagram study.


Electric arc melting furnace with electromagnetic stirring (Quartz chamber) is a cheap and small vacuum arc melting furnace with tungsten electrode and water-cooled copper crucible. The melting temperature of the equipment can exceed 3000, and then the temperature is quickly reduced. The transparent quartz chamber can be used to observe the melting of the sample at 360 degrees. CY-MSM-130B is a high quality and inexpensive experimental tool for sample smelting, heat treatment, and the phase diagram study.

Electric arc melting furnace with electromagnetic stirring

Electric arc melting furnace technical parameter:

Product model

CY- MSM-130B

 Main features

1.   Design melting sample amount 10 g, temperature can   reach 3000 .

2.   Adopt transparent quartz cavity (with protective cover), which can observe   the melting situation of the sample at 360 °.

3.   Water-cooled copper crucible.

4.   The melting gun angle can be adjusted.

5.   The vacuum interface is connected with a flexible bellows to ensure   tightness.

Technical parameters

1. Vacuum gauge

A   mechanical pressure gauge is installed on the device to measure the pressure   inside the chamber

Optional   digital display anti-corrosion vacuum gauge

2. Arc power

Input   voltage: 380VAC, three-phase

Max   input current: 10A. (Requires a 40A air switch)

Output   voltage / current: 22.6 V / 315A (DC)

Push   button switch controls power output

3.Tungsten electrode

Equipped   with a 4mm diameter tungsten electrode with water cooling on the head

Electrode   gun angle adjustable for smelting multiple samples

Meltable   sample amount <10 g, temperature reaches 3000

4.Crucible

Equipped   with a water-cooled copper crucible with 4 work stations, each station is   Φ25mm × 7mm

Copper   crucibles of various sizes can be customized according to customer   requirements

5. Chamber

Quartz   chamber with Φ168 × 136mmH

Product specifications

Furnace   size

Furnace   body: 500 mm L × 450 mm W × 720 mm H

Power   supply: 460mm L × 306mm W × 305mm H

Standard accessories

1   set Melting furnace host

1   Argon arc welder

1   Chiller

1   furnace frame

1   Vacuum pump

Optional accessories

Suction   Casting Parts (Please contact our company when you need to buy)

Application considerations

1.Vacuum   pump (optional)

Optional   various vacuum pumps

    Vacuum degree: 10 ^ -2 torr (mechanical pump)

            10 ^ -5 torr (molecular pump system)

2.Water   chiller (optional)

When   the equipment is running, cooling water is needed to cool the arc gun and the   copper crucible. Optional circulating water chiller CY-5000 can be purchased from our company (water pipe specifications are   12mm outer diameter x 8mm inner diameter)
