Small vacuum induction furnace CY-IM315-S

Small vacuum induction furnace CY-IM315-S

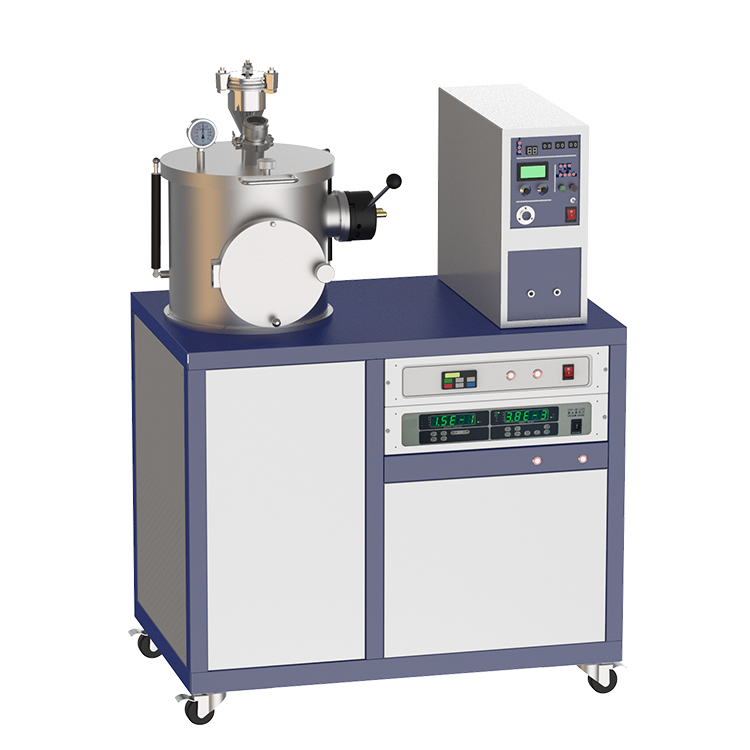

    This product is a small vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition.

This product is a small vacuum induction furnace with induction heating, and the melting temperature of the equipment can reach 2000℃. The induction furnace adopts a stainless steel water-cooled chamber and is equipped with a quartz observation window to observe the sample melting condition. It is suitable for a small amount of sample melting and heat treatment, phase diagram research. The equipment is equipped with a high-vacuum molecular pump set, which can effectively improve the vacuum degree of the substrate and thus improve the quality of the melting. The equipment is also equipped with a lifting platform and a flip handle to facilitate the operator to carry out the casting and sampling operations after melting.

Small vacuum induction furnace feature:

The equipment is comprehensive in function, fast in melting, easy to use, energy-saving and environmentally friendly, and is very suitable for laboratory research on small-dose metal samples.

Small vacuum induction furnace specifications:

CY-IM315-S small vacuum   induction furnace

Induction power

Frequency

High frequency

Power

AC220V 15KW/three-phase 380V 25KW

Vacuum chamber

Chamber   material

stainless steel

Cooling system

Water-cooled   electrode, water-cooled chamber, water-cooled mold

Chamber size

φ360mm× 350mm

Watch Window

Main Watch   Window φ190mm, upper Watch Window φ45mm

Mold window

φ80mm

Lifting platform

0~40mm   lifting range

Water cooled interface

Φ8mm quick plug   interface

Accessory

Vacuum   funnel

Vacuum system

Model

CY-GZK103-A

Pumping interface

CF160

Molecular pump

CY-600

Exhaust interface

KF16

Backing pump

Rotary vane pump

Vacuum   measurement

Compound   vacuum gauge

Ultimate vacuum

1.0E-5Pa

Power supply

AC 220V 50/60Hz

Pumping rate

Molecular pump: 600L/S rotary vane pump: 1.1L/S Comprehensive pumping   performance: The vacuum can reach 1.0E-3Pa in 20 minutes.

Crucible

Graphite crucible

Φ30mm × 85mm

Alumina crucible

φ44mm ×   90mm



Others

Supply voltage

AC220V 50Hz or three-phase 380V

Overall size

1000mm × 600mm × 1200mm

Total power

18KW/28KW

Total Weight

600kg
