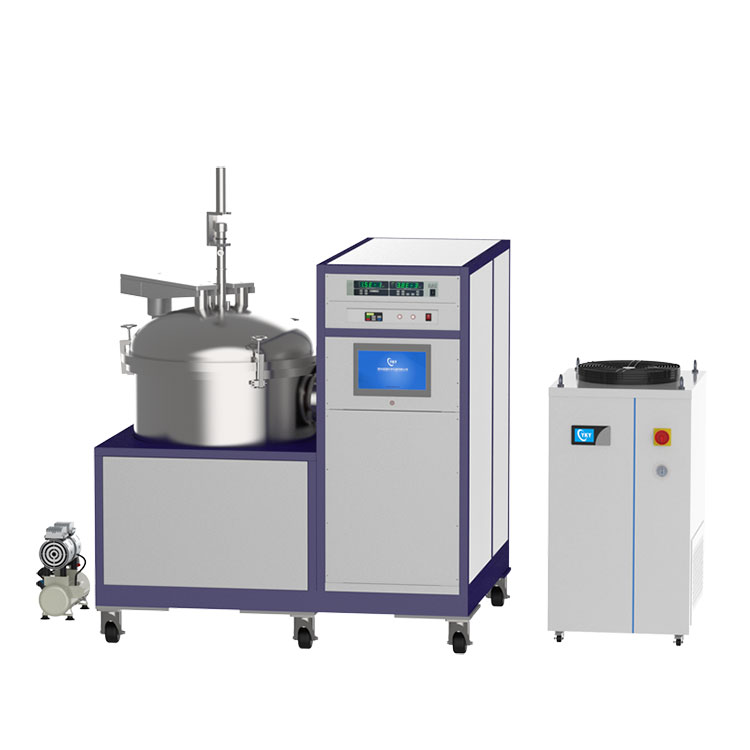

3000C High temperature vacuum induction melting furnace

    This product is a high temperature vacuum induction melting furnace, using induction heating, equipment melting temperature can reach 3000℃.  Stainless steel water-cooled chamber, equipped with quartz observation window to observe sample melting, suitable for metal sample melting and heat treatment, phase diagram study.  The equipment adopts high quality high-frequency induction power supply, the maximum power is 35KW.  The equipment adopts infrared temperature measurement, intelligent temperature controller temperature control, with over temperature protection function, can accurately control the melting temperature.

This product is a high temperature vacuum induction melting furnace, using induction heating, equipment melting temperature can reach 3000℃.  Stainless steel water-cooled chamber, equipped with quartz observation window to observe sample melting, suitable for metal sample melting and heat treatment, phase diagram study.  The equipment adopts high quality high-frequency induction power supply, the maximum power is 35KW.  The equipment adopts infrared temperature measurement, intelligent temperature controller temperature control, with over temperature protection function, can accurately control the melting temperature.

The equipment is equipped with a high vacuum diffusion pump group, which can effectively improve the vacuum of the base and improve the smelting quality.  The equipment is also equipped with lifting platform and turning handle, which is convenient for the operator to conduct casting and sampling operation after smelting.  The equipment also has a dumping device, which can dump the melted sample into the mold prepared in advance to produce the required sample shape.

The equipment has comprehensive functions, fast melting, easy to use, energy saving and environmental protection, which is very suitable for laboratory metal sample research.

3000C High temperature vacuum induction melting furnace


high temperature vacuum induction melting furnace technical parameters:



Product name

High temperature vacuum induction melting furnace

Technical parameters

1,The   common temperature 2800

2,Vacuum   chamber size: : φ1000mm×1400mm

3,crucible   volume: φ120×150mmsmelt 5-10KG

4,working   gas content in furnace: vacuum or Ar,N2 gas protection(slightly positive   pressure),vacuum replacement

5,temperature   measurement: far infrared optical temperature measurement, its range:1000~3000

6,temperature control: PID intelligent program control(temperature   control accuracy ±1) and   manual control

7,protection mode: PLC intelligent warning, alarm protection and   power supply necessary safety protection

Voltage

480V 60HZ      three-phase
