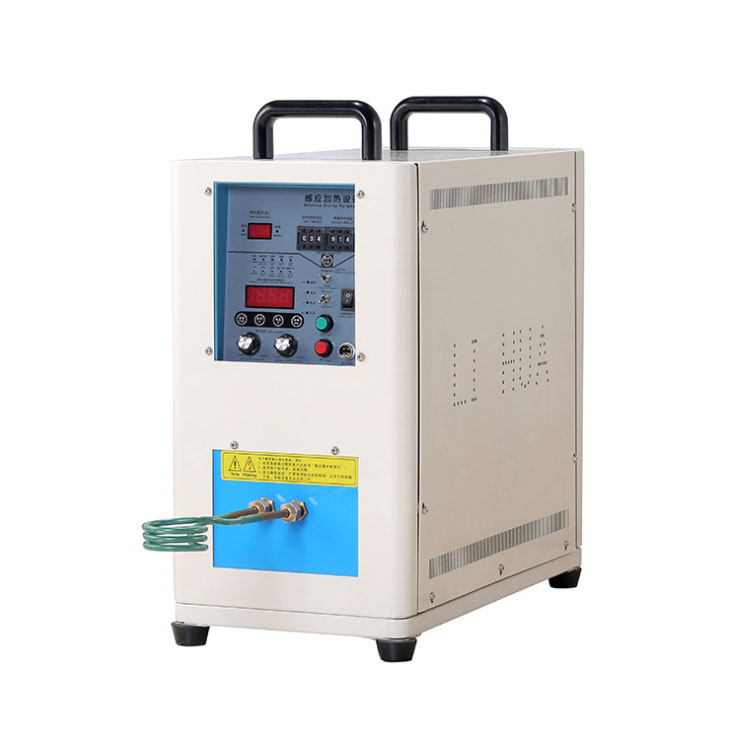

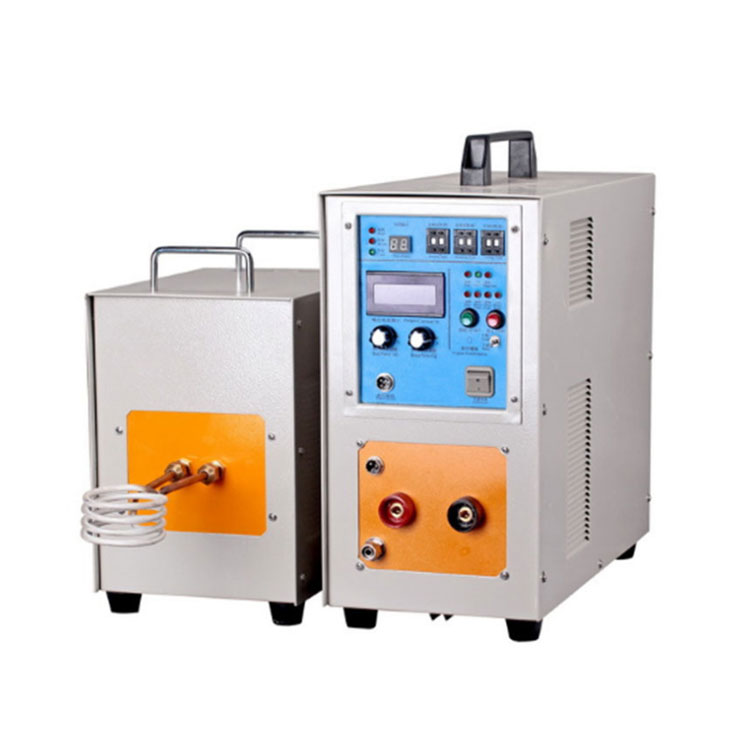

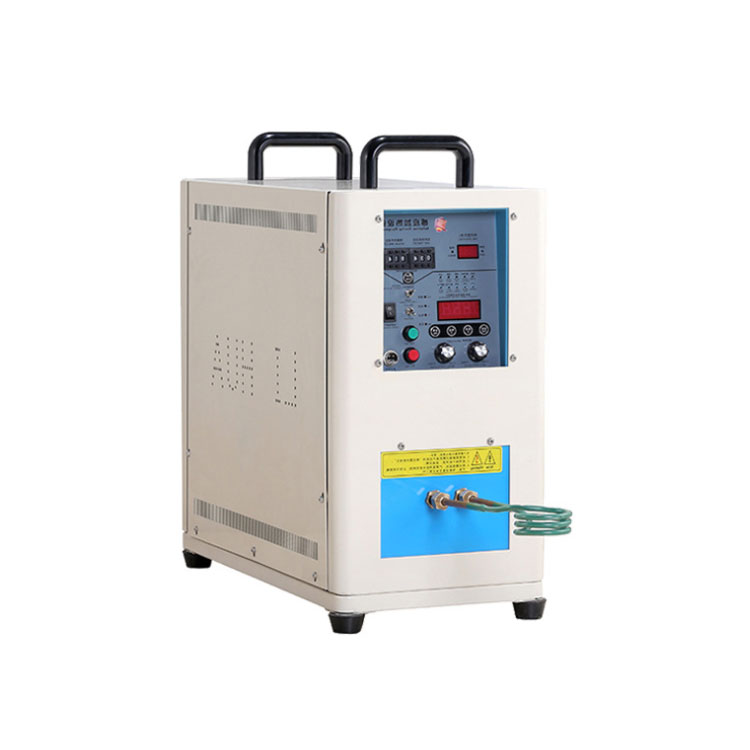

15 KW (30-80KHz) Desktop Induction Heater

15 KW (30-80KHz) Desktop Induction Heater

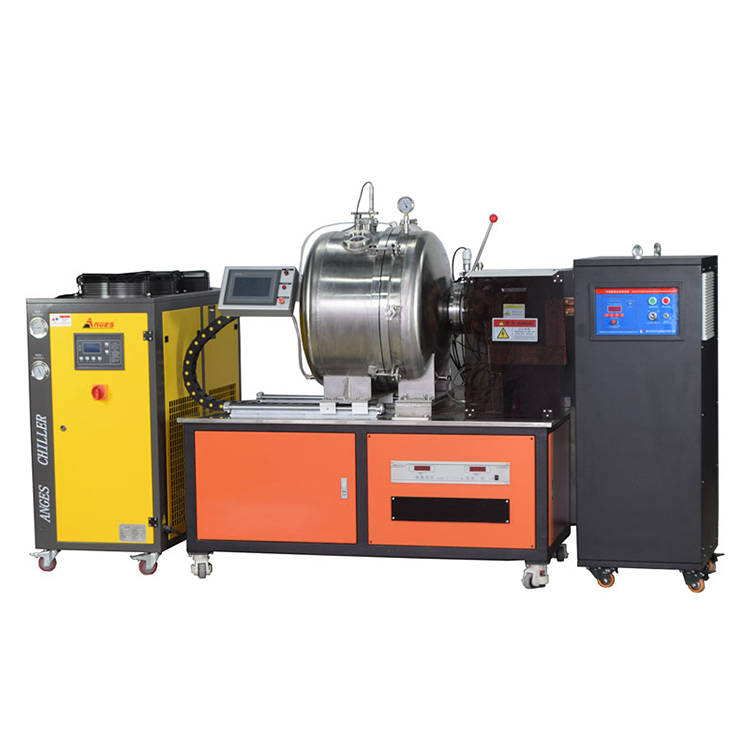

    CY-50K-15AB is the 15KW induction heating power supply of the CY-SP series vacuum induction melting system

CY-50K-15AB is the 15KW induction heating power supply of the CY-SP series vacuum induction melting system

Technical parameters of induction heater:

Working Voltage

3 Phases,208-240V AC, 50/60 Hz

Max. Input Current

  • 52A (Min. 60A breaker required)

  • Power cable included (Plug is not included)

Output Frequency

30-80 kHz

Heating Current

200-600 Amp

Max. Input Power

15 KW

Duty Cycle

100%

Max. Distance Between Heater and Controller

2m

Max. Sample Weight

1 kg

Timer Control

Automatic timer control or Manual control selectable

  • Manual Control: by Foot Pedal

  • Automatic Heating Time: 1-99 Seconds

  • Automatic Dwell Time: 1-99 Seconds

  • Automatic Cooling Time: 1-99 Seconds

Water Cooling

  • Flowrate: >10 L/Min

  • Pressure: ≥0.2 MPa (29 Psi)

  • Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Please to order separately

  • Protection: Overpressure and over temperature switch

Induction Coil

The copper coil is not included

Display

Digital display shows output power and current

Product Dimensions

18"(L) x 8"(W) x 17"(H)

Warranty

One Year limited warranty with lifetime support (Consumable parts like coils, fittings and clamps are not covered by the warranty)

Warning

To prevent internal circuitry damage:

  • Never allow the inductive current to exceed 800 A when the unit is in use.

  • The maximum time duration for running the unit at the 600~800 A working current range should not exceed 60 seconds.

Net Weight

28 kg (62 lbs)
