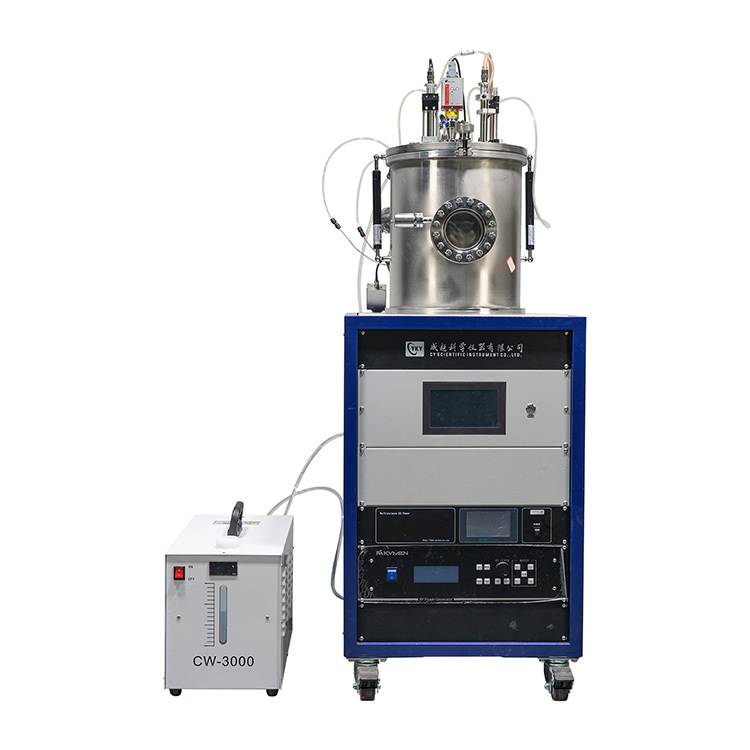

Dual-target magnetron sputtering coater

    This device can be used for preparing single-layer or multi-layer ferroelectric thin films, conductive films, alloy films, and the like. Compared with similar equipment, the dual-target magnetron sputtering coater is not only widely used, but also has the advantages of small size and easy operation, and is an ideal equipment for preparing material films in a laboratory.


Dual-target  magnetron sputtering coater is a cost-effective magnetron sputtering coating equipment independently developed by our company. It is standardized, modular and customizable. There are 1-inch or 2-inch magnetron targets for you to choose. Customers can choose the target according to the size of the substrate to be coated. The device is equipped with two 500W DC power supply. The DC power supply can be used for the preparation of metal film. The two targets can meet the needs of multi-layer or multiple coatings.

The coating machine is equipped with two-channel high-precision mass flowmeter. If you have other requirements, you can customize the gas path of up to four-channel mass flowmeters to meet the complex gas environment construction requirements. The instrument is equipped with advanced turbomolecular pump sets, the ultimate vacuum is up to 1.0E-5Pa, and other types of molecular pumps are available for purchase. Molecular pump gas path is controlled by multiple solenoid valves, you can open the chamber to take out the sample without shutting down the pump, greatly improving your work efficiency. This product can be equipped with an integrated industrial computer to control the system. In the computer program, most functions such as vacuum pump control and sputtering power control can be realized, which can further improve your experimental efficiency.

Dual-target magnetron sputtering coater

Dual-target  magnetron sputtering coater application:

This device can be used for preparing single-layer or multi-layer ferroelectric thin films, conductive films, alloy films, and the like. Compared with similar equipment, the dual-target magnetron sputtering coater is not only widely used, but also has the advantages of small size and easy operation, and is an ideal equipment for preparing material films in a laboratory.

Dual-target  magnetron sputtering coater technical parameters:

product name

Dual-target magnetron sputtering coater

Sputtering   power supply

power supply×2 power supply:500W

Vacuum chamber

Chamber sizeφ300mm×300mmChamber materiaStainless steel

Watch window:   φ100mm

 The   cavity opening method adopts top opening, which makes it easier to change the   target

Magnetron Sputtering   target head

There are 2 magnetron sputtering heads installed   in the instrument, and they are all equipped with a water-cooled interlayer,   which can pass in cooling water to cool the target material. The two   sputtering heads are connected with a DC power supply, and the main   sputtering conductive

Sample stage

Sample   carrier size: 140mm dia. (Maximum 4" substrate can be placed) The sample   carrier can be rotated at a speed of: 1-20 rpm (adjustable) The highest   heating temperature of the sample carrier is 500℃, and the temperature   control accuracy is +/- 1.0 °C

Gas flow controller

There   are 2 mass flow meters installed inside the instrument, the range is:   0-200sccm

Vacuum pump

Equipped   with a set of molecular pump system, using one-button operation 80L/S

Cooling system

16L/min.

Voltage

220V 50HZ
