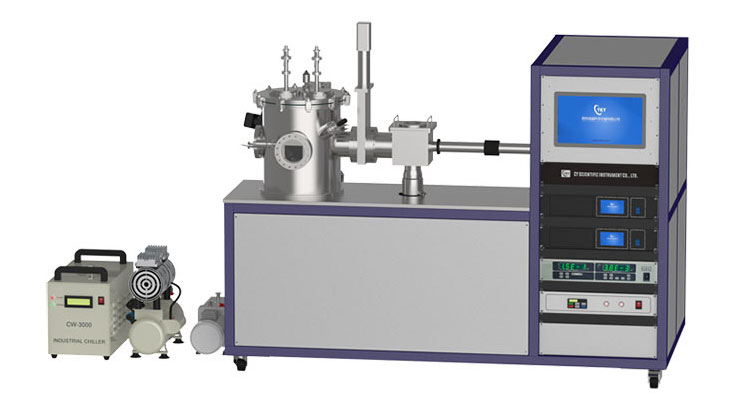

Double target magnetron sputtering coater with transition chamber

    this equipment is dual target magnetron sputtering coater apparatus, which can be used for the preparation of metal thin films. It has applications in the fields of electronics, optics, and special ceramic preparation. It can also be used for laboratory SEM sample preparation

this equipment is dual target magnetron sputtering coater apparatus, which can be used for the preparation of metal thin films. It has applications in the fields of electronics, optics, and special ceramic preparation. It can also be used for laboratory SEM sample preparation。

Double target magnetron sputtering coater with transition chamber

magnetron sputtering coater configuration structure:

The dual target magnetron sputtering coater is equipped with two magnetron targets and two sets of DC power supplies, which can be used to coat multilayer conductive metal films. At the same time, the equipment has two parts: a main chamber and a transition chamber. The transition chamber is equipped with a magnetic push rod, and a vacuum gate valve is installed between the two chambers; The user can load samples in the transition chamber while performing sputtering work in the main chamber, and perform vacuum pre-pumping. After the sputtering in the main chamber is completed, the sample can be pushed into the sample stage of the main chamber through the magnetic push rod. Such a design can reduce the number of vacuum pumping times in the main chamber, which not only effectively saves time, but also ensures a better local vacuum and effectively improves the quality of the coating.

magnetron sputtering coater technical parameter:

Product name

Double   target magnetron sputtering coater with transition chamber

Product model

CY-MSH325G-II-DCDC-SSdouble vacuum chamber

Installation   conditions

1.   Operating environment temperature 25℃±15℃, humidity 55%Rh±10%Rh;

2.   Equipment power supply: AC220V, 50Hz, must be well grounded;

3.   Rated power: 5000w;

4.   Equipment gas: the equipment chamber needs to be filled with argon for   cleaning, and the customer needs to prepare argon, with a purity of ≥99.99%;

5. The   size of the venue is 1200mm×1200mm×2000mm;

6. The   placement position requires good ventilation and heat dissipation.

Technical   parameters

1.   Sputtering power supply: DC power supply 500W x2; maximum output voltage   600V, limit output current 1000mA

2.   Magnetron target: 2-inch balanced target with magnetic coupling baffle;

3.   Applicable target material for magnetron target: φ50mm x 3mm thick conductive   metal target material

4.   Cavity size: main cavity φ325mm x 410mm; transition cavity 150x150x150mm

5.   Chamber function: The main chamber is equipped with a side door sealed by a   sealing ring, a quartz observation window with a baffle, and a manual   operating rod for transferring samples. The transition chamber is equipped   with an upper cover with a quartz window sealed by a sealing ring, a magnetic   coupling push rod for transporting samples into the main chamber, and an   independent vacuum system.

6.   Cavity material: stainless steel 304

7.   Rotating heating sample table: The speed is continuously adjustable from 1 to   20 rpm; the heating temperature is up to 500°C, and the heating rate is   recommended to be 10°C/min, and the maximum temperature is 20°C/min.

8.   Cooling method: Magnetron target and molecular pump need circulating water   cooler;

9.   Water cooler: water tank volume 9L, flow rate 10L/min

10. Gas   supply system: mass flow meter, gas type AR gas, flow   rate 1~200sccm (customizable);

11. Flow   meter accuracy: ±1.5% range

12. The   pumping interface of the vacuum chamber is CF160;

13. The   air inlet interface is a 1/4 inch double ferrule joint;

14. The   display is 14 industrial computer all-in-one computers;

15. The   sputtering current can be adjusted, and the sputtering safe current value and   safe vacuum value can be set;

16.   Safety protection: Sputtering current will be automatically cut off when   overcurrent and vacuum are too low;

17.   Vacuum system: the main chamber is equipped with a CY-GZK103 high vacuum   molecular pump set with a pumping speed of 600L/s; the transition chamber is   equipped with a small molecular pump set with a pumping speed of 60L/s. The   two sets of vacuum systems can work and control independently, and the   pneumatic valves between the chambers and in the vacuum system are all   controlled by programs, which can realize one-key action, which is convenient   and quick.

18. Ultimate   vacuum: 5E-4Pa (with molecular pump);

19. The   vacuum measurement is a composite vacuum gauge, and its range is:   10-5Pa~105Pa

Precautions

1. In   order to achieve a higher oxygen-free environment, the vacuum chamber must be   cleaned with high-purity inert gas at least 3 times.

2.   Magnetron sputtering is more sensitive to the intake air volume, and a mass   flow meter needs to be used to control the intake air volume.

3. Keep   the cavity in a vacuum when the equipment is not in use.

4. If   it has not been vacuumed for a long time, it should be degassed when it is   used again to improve the vacuum performance.

Optional   accessories

Film   thickness monitor

1. Film   thickness resolution: 0.0136Å (aluminum)

2. Film   thickness accuracy: ±0.5%, depending on the process conditions, especially   the position of the sensor, material stress, temperature and density

3.   Measurement speed: 100ms-1s/time, the measurement range can be set: 500000Å   (aluminum)

4.   Standard sensor crystal: 6MHz

5.   Applicable chip frequency: 6MHz Applicable chip size: Φ14mm Mounting flange:   CF35

Other   accessories

1.   CY-CZK103 series high-performance molecular pump set (including compound   vacuum gauge, measuring range 10-5Pa~105Pa);

CY-GZK60   series small molecular pump set (including compound vacuum gauge, measuring   range 10-5Pa~102Pa)

VRD-4   bipolar rotary vane vacuum pump;

2.   KF25/40 vacuum bellows; length can be 0.5m, 1m, 1.5m; KF25 clamp bracket

3.   Crystal oscillator of film thickness meter;
