Coating system vacuum chamber sample transfer machine

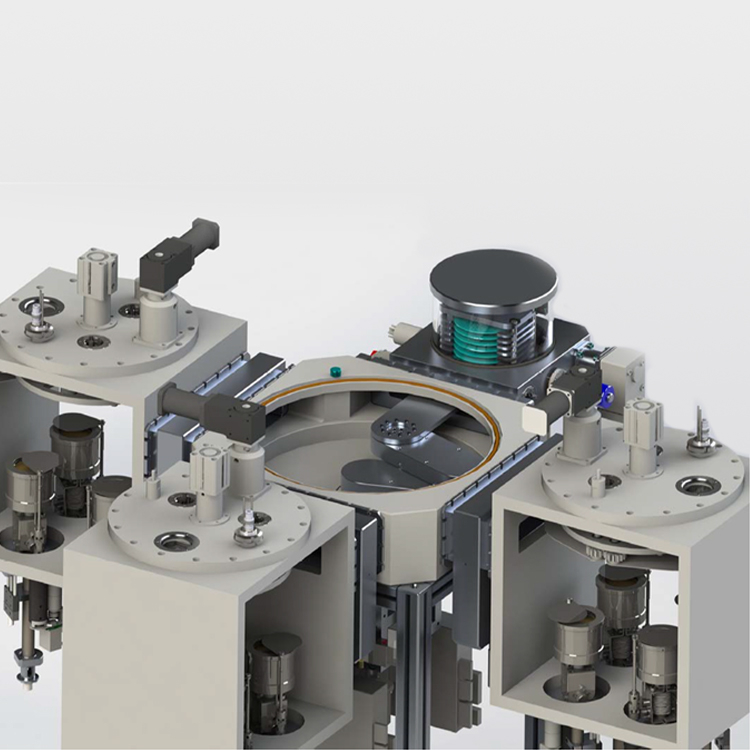

    The multi-vacuum chamber coating system (cluster type multi-chamber coating system) can be built by using this system, and the samples can be automatically sent and transferred between each vacuum chamber. The system adopts Siemens servo control system to realize the operation control of the transfer manipulator, which is reliable, accurate and fast

The multi vacuum chamber coating system (cluster type multi-chamber coating system) can be built by using this system, and the samples can be automatically sent and transferred between each vacuum chamber. The system adopts Siemens servo control system to realize the operation control of the transfer manipulator, which is reliable, accurate and fast.

   automatic transmission control sample

   four stations, six-station system

   touch screen operation, the operation parameters can be set up

   RS232 control  interface

   plugins sample library

Coating system vacuum chamber sample transfer machine

Technical parameters:



Project

Four-station

Four station

Instructions

Supply   voltage

AC220V/50Hz/1.2kW


Number of

4

6

Include sample

Transfer   chamber

420 x 420mm

580 x 580mm


Drive arm length

140mm

200mm


Sample   diameter:

<=200mm

Large size can be customized

Maximum delivery distance

540mm

820mm

Sample diameter

490mm

770mm

Sample diameter

Diameter   of external vacuum chamber

<=480mm

<=886mm

Sample diameter

<=380mm

<=786mm

Sample diameter

Manipulator   lifting

<=12mm


Transfer   sample thickness

0.3   ~ 4 mm


Vacuum   interface

KF40


Ultimate   vacuum

3.0x10-4Pa   (Molecular Pump)


Operating   interface

Touch   screen


External   control

RS232,   ModBus protocol


Service   ambient temperature

The   < 35 ℃


Ambient   humidity for

<75%(relative   humidity) no condensation


Use   ambient altitude

<2000m


Exterior   size

420x420x1300mm

580x580x1300mm

(L x W x H)

Weight

About   85kg

About   105kg

Vacuum   unit and isolation valve are not included
