Dual-target RF magnetron sputtering coater with two film thickness gauges CY-MSV300-II-RFRF-SS

Dual-target RF magnetron sputtering coater with two film thickness gauges CY-MSV300-II-RFRF-SS

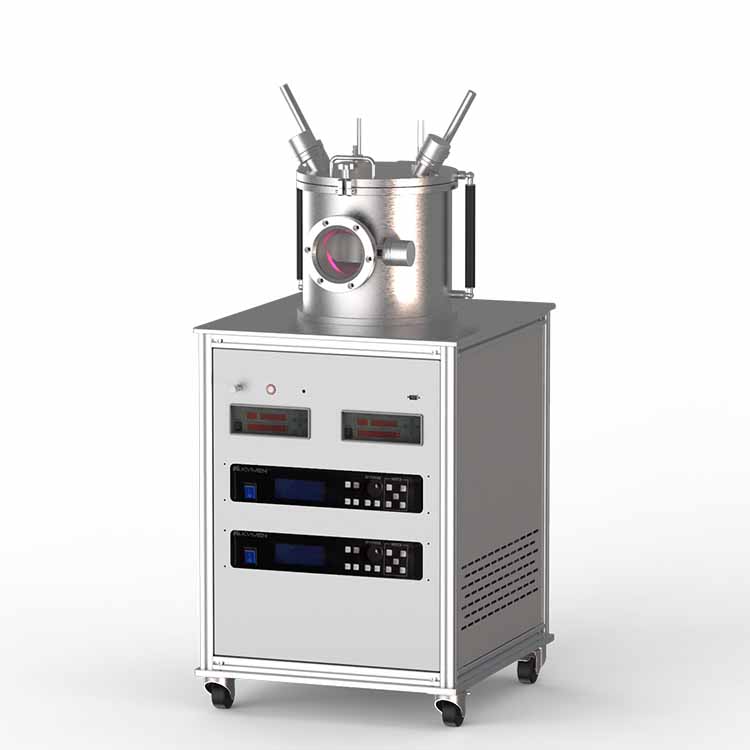

    Dual-target RF magnetron sputtering coater is a cost-effective magnetron sputtering coating equipment independently developed by our company. It is standardized, modular and customizable. There are 1-inch or 2-inch magnetron targets for you to choose. Customers can choose the target head according to the size of the substrate to be coated.

Dual-target RF magnetron sputtering coater is equipped with two 300W RF power sources. The RF power supply can be used for the preparation of non-metal films. The two targets can meet the needs of multi-layer coatings. If customers have other coating needs, RF power supply and pulse power supply can be customized. Various types of power supply are available from 300W to 1000W in various specifications.

The coating machine has a two-channel high precision mass flow meter. If customers have other requirements, the gas channel of up to four-channel mass flow meter can be customized to meet the complex gas environment requirements. The instrument is equipped with advanced turbo molecular pump group, and ultimate vacuum is up to 1.0E-5Pa, and other types of molecular pumps are available for purchase.

In addition, this machine is equipped with two high precision film thickness gauges, which can meet the film thickness detection requirements during the coating process. If customers need to install multiple film thickness gauges, also can contact our technical staff for customization.

This product can be equipped with an integrated industrial computer to control the system. In the computer program, most functions such as vacuum pump control and sputtering power control can be realized, which can further improve your experimental efficiency.

Dual-target RF magnetron sputtering coater application:

This device can be used for preparing single-layer or multi-layer ferroelectric thin films, conductive films, alloy films, semiconductor films, ceramic films, dielectric films, optical films, oxide films, hard films, PTFE films, and the like. Compared with similar equipment, the dual-target magnetron sputtering coater is not only widely used, but also has the advantages of small size and easy operation, and is an ideal equipment for preparing material films in a laboratory.

Dual-target RF magnetron sputtering coater technical parameters:

Sample stage

Size

φ185mm

Heating temperature

Max 500

Temperature accuracy

±1

Rotational speed

1-20rpm adjustable

Magnetron Sputtering head

Quantity

2”×2 (1”,2” optional)

Cooling mode

Water cooling

Water chiller

Circulating water chiller with flow rate of 10L/min

Vacuum chamber

Chamber size

φ300mm×300mm

Chamber material

Stainless steel

Watch window

φ100mm

Opening mode

Top cover open

 Mass flowmeter

2 channels; measuring range 100SCCM; 100SCCM (can be customized according to customer needs)

Vacuum system

Model

CY-GZK103-A

Molecular pump

CY-600

Backing pump

Rotary vane pump

Ultimate vacuum

1.0E-5Pa

Pumping interface

KF40

Exhaust interface

KF16

Vacuum measurement

Compound vacuum gauge

Power supply

AC;220V   50/60Hz

Pumping rate

Molecular pump: 600L/S rotary vane pump: 1.1L/S

Comprehensive gas pumping performance: vacuum up to 1.0E-3Pa in 20 minutes

Power configuration

Quantity

RF power supply×2

Max output power

RF 300W

Other parameters

Supply voltage

AC220V,50Hz

Total power

2.5KW

Overall size

600mm×650mm×1280mm

Total Weight

About 300kg
