Special roll to roll heating coating Machine for lithium batterySpecial roll to roll heating coating Machine for lithium battery

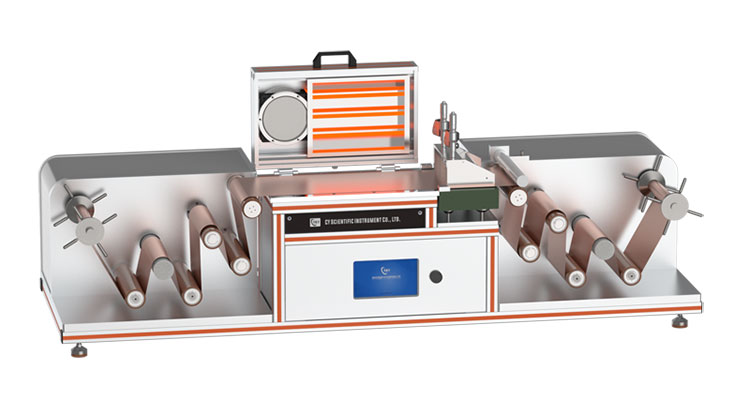

Special roll to roll heating coating Machine for lithium battery

    This fully automatic roll to roll heating coating Machine is mainly used for coating liquid or colloidal films in the laboratory. The equipment uses a continuously variable motor to precisely control the coating film speed, so as to achieve the goal of making the sample advance at a uniform speed and even coating the film

This fully automatic roll to roll heating coating Machine is mainly used for coating liquid or colloidal films in the laboratory. The equipment uses a continuously variable motor to precisely control the coating film speed, so as to achieve the goal of making the sample advance at a uniform speed and even coating the film. The scraper is made of all stainless steel and has a constant weight, which can improve the consistency and uniformity of the coating film. The device adopts a sample stage with vacuum adsorption function, which can absorb samples smoothly. At the same time, the coating machine has a bottom heating function, the heating temperature can reach 120 ℃, and the baking function is realized during the film coating process, so that the film can be dried quickly and convenient for the winding operation.

Special roll to roll heating coating Machine for lithium battery

roll to roll heating coating Machine main feature:

1. This equipment uses a continuously variable motor to accurately control the coating speed.

2. Use adjustable scraper.

3. The intelligent vacuum heating suction plate at the bottom and the drying system with digital display temperature control can adapt to the development of science and technology of film formation under high temperature conditions.

4. With automatic correction, tension control, automatic heating, and automatic exhaust.

roll to roll heating coating Machine technical parameters :

Product model

CY-AFC500R-HTUVP

Power supply

AC220V, 50Hz

Total power

3500W

Heating

Hot air heating at the bottom

Maximum temperature: 120

Temperature control accuracy:   ±1

Drying area: length 1m, width   600mm

Film thickness accuracy

0.01mm

Vacuum substrate

Material: aluminum alloy   substrate

Size400mmW*400mmL

Vacuum pump

Mini vacuum pump

Film coater

Scraper film maker

Coating width: 500mm

Scraper adjustment: manual   adjustment, dial indicator display accuracy 1um

Substrate amplitude

520mm

Coated amplitude

500mm

Winding mechanism

The speed of the rewinding and   unwinding device is adjustable from 100-400mm/min. The machine has feedback   adjustment and can automatically correct the speed.

Width of guide roller: 600mm

Tension control: max. 50N

Rewinding and unwinding   diameter: max. φ200mm

Rewinding and unwinding   precision: ±0.5mm

Overall dimensions

2000mm x 900mm x600mm

Weight

About  200Kg
