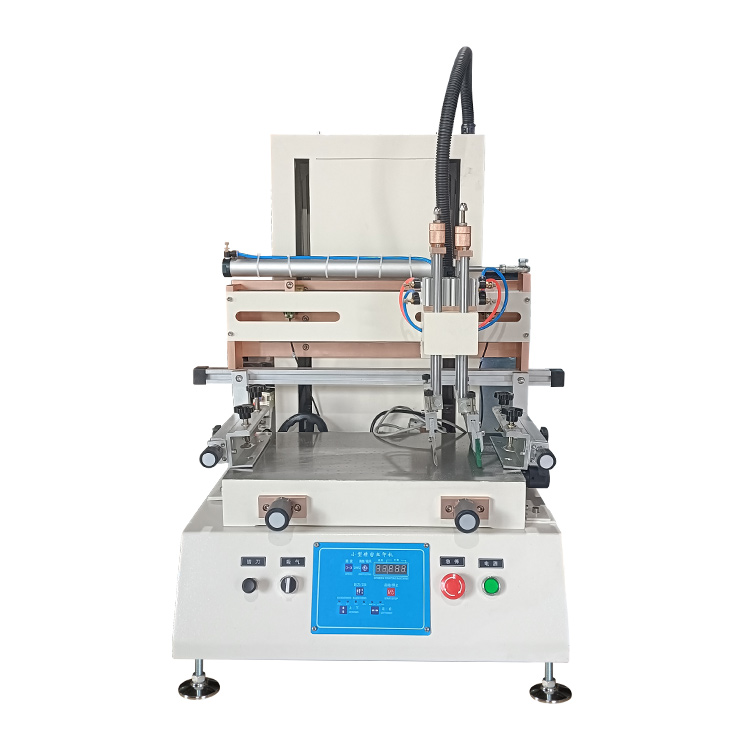

Small high precision screen printing machine

    Suitable for printing silica gel, plastic buttons, PET, glass, plastic products, nameplate, trademark, IC board, metal plate, liquid  crystal display board and signs and other plane profile quality

Compact shape no noise, cast aluminum polishing  table, oil return scraper double mode selection, adapt to various printing requirements. 1, small desktop screen printing machine microcomputer control high degree of automation, simple operation. 2, small screen printing  machine using imported famous factory steam components,   reliable  performance. 3, precision guide instead of guide column increase accuracy, smooth lubrication,  high printing  accuracy, more convenient and fast adjustment. 4, the use of original Japan and Taiwan imported pneumatic components, pneumatic    head lateral movement by Germany imported rodless cylinder drive, reaction speed, adhere to high precision casting machine quality. 5, the printing  stroke and speed can be adjusted to meet different printing  requirements. 6, automatic balance scraper, can ensure the balance of printing  pressure. 7, keyboard screen printing machine adopts imported shaft, shaft sleeve makes screen scraper smooth glide printing.  8. The running speed of the sliding  part can be adjusted independently, which is convenient and fast to use. 9, according to the substrate workbench can choose fine grinding  high hardness suction table/T groove table, uniform cloth suction holes, strong vacuum adsorption, to ensure the accuracy of multi-color  color. 10, can be set manual/semi-automatic/automatic three modes, printing  action indirect time can be controlled digitally.

Small high precision screen printing machine

screen printing  machine Range of adaptation:



Suitable for printing silica gel, plastic buttons, PET, glass, plastic products, nameplate, trademark, IC board, metal plate, liquid  crystal display board and signs and other plane profile quality.



screen printing  machine Technical parameters:

Printing   color:

Monochrome

Yield:

2000

Type   of product:

Brand   New

How   to operate:

Manual/semi-automatic/fully

automatic   all-in-one machine

Printing   surface:

Flat   surface

For:

Any   flat material

Applicable   material:

Any   material

Printing   speed:

2000   (pcs/hr)

Maximum   printing

area   (L x W) :

300   x 200 (mm)

Substrate   thickness range:

0-100mm

Table   size:

250*450mm

Table   vertical and horizontal   adjustment amount:

0-10mm

Mesh   frame size:

350*520mm

Power   supply:

AC220V   50Hz

Overall   dimensions:

585*565*1000mm

Weight:

150kg

Model:

LWS-2030

Specifications:

585*565*1000mm

Packing:

Wooden frame/wooden box
