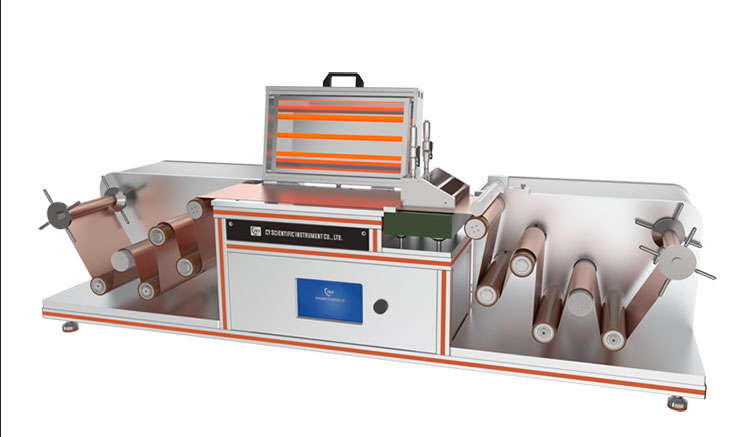

Lithium battery roll to roll film coating machine

    this model of roll to roll tape casting film coater is mainly used for coating liquid or colloidal film in laboratory

this model of roll to roll tape casting film coater is mainly used for coating liquid or colloidal film in laboratory. The equipment adopts step-less variable speed motor to precisely control the coating speed, so as to achieve the purpose of uniformly rotating the roller to drive the aluminum foil or copper foil for coating; the doctor-blade is made of all stainless steel, with constant weight, which can improve the consistency and uniformity of the coating; the coating platform is equipped with water cooling pipeline, which can be cooled by circulating water, so that the substrate and film material can be maintained at a low temperature;The rewinding and unwinding device adopts feedback adjustment, which can automatically control the speed within ± 1 rpm, effectively ensuring the uniformity of the coating film; the upper cover has the functions of dust prevention and heat preservation, and makes the equipment more beautiful.

Lithium battery roll to roll film coating machine

Lithium battery roll to roll film coating machine Technical parameters:

Product model

CY-AFC500R-HTUVP

Power supply

AC220V, 50Hz

Total power

3500W

Heating

Hot air heating at the bottom

Maximum temperature: 120

Temperature control accuracy:   ±1

Drying area: length 1m, width   600mm

Film thickness accuracy

0.01mm

Vacuum substrate

Material: aluminum alloy   substrate

Size400mmW*400mmL

Vacuum pump

Mini vacuum pump

Film coater

Scraper film maker

Coating width: 500mm

Scraper adjustment: manual   adjustment, dial indicator display accuracy 1um

Substrate amplitude

520mm

Coated amplitude

500mm

Winding mechanism

The speed of the rewinding and   unwinding device is adjustable from 100-400mm/min. The machine has feedback   adjustment and can automatically correct the speed.

Width of guide roller: 600mm

Tension control: max. 50N

Rewinding and unwinding   diameter: max. φ200mm

Rewinding and unwinding   precision: ±0.5mm

Overall dimensions

2000mm x 900mm x600mm

Weight

About  200Kg
