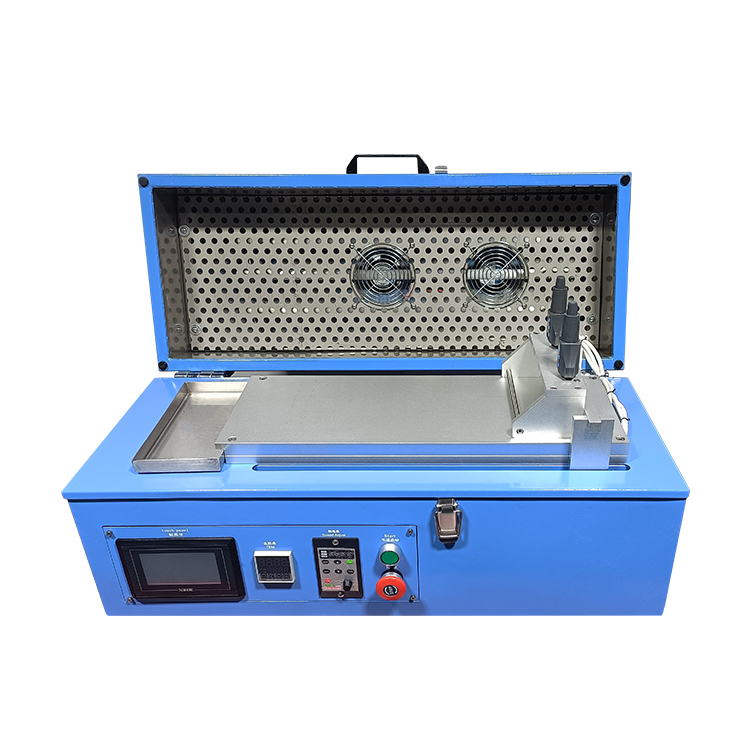

Large Heatable Automatic Film Coater for research on ceramic tape casting and Li-Ion battery electrode coating

    This is a  Large Automatic Film Coater with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce the smooth coating on all types of materials

This is a  Large Automatic Film Coater with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce the smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. The 100 ℃ heating cover on the top vaporizes the water immediately and there is a micrometer adjustable applicator included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating.

Large Heatable Automatic Film Coater for research on ceramic tape casting and Li-Ion battery electrode coating

Automatic Film Coater Specification:

Working   Voltage




204-240VAC,   50/60HZ, Please select the voltage based on requirement.

Max.   Power Consumption

1250W


  Traverse Speed

·           5   - 100 mm/sec variable

·           Accuracy:   10mm/sec

Stroke   Length

10   - 550 mm adjustable by using Adjustable Position Switch

Max.   Coating Dimensions

250mm(W)   x 550mm(L)


  Vacuum chuck



·           Vacuum   chuck made of Aluminum alloy with < 1 mm holes

·           Vacuum   Chuck Dimensions: 600mm(L) x 300mm(W) x 20mm(H)


  Vacuum Pump



·           120L/min   Oilless Vacuum Pump



Heating   Cover




·           Voltage   Selection: 110VAC and 220VAC

·           Heating   Power: 1200W

Film   Applicator




·           One 250   mm width Micrometer Adjustable Film Applicator is included, with an   adjustable thickness of 0.01 mm - 5 mm

·           Traverse   Pusher is included for pushing the doctor blade to ensure constant speed   coating

·           Note:    Thinnest film can be achieved is > 10 micron
