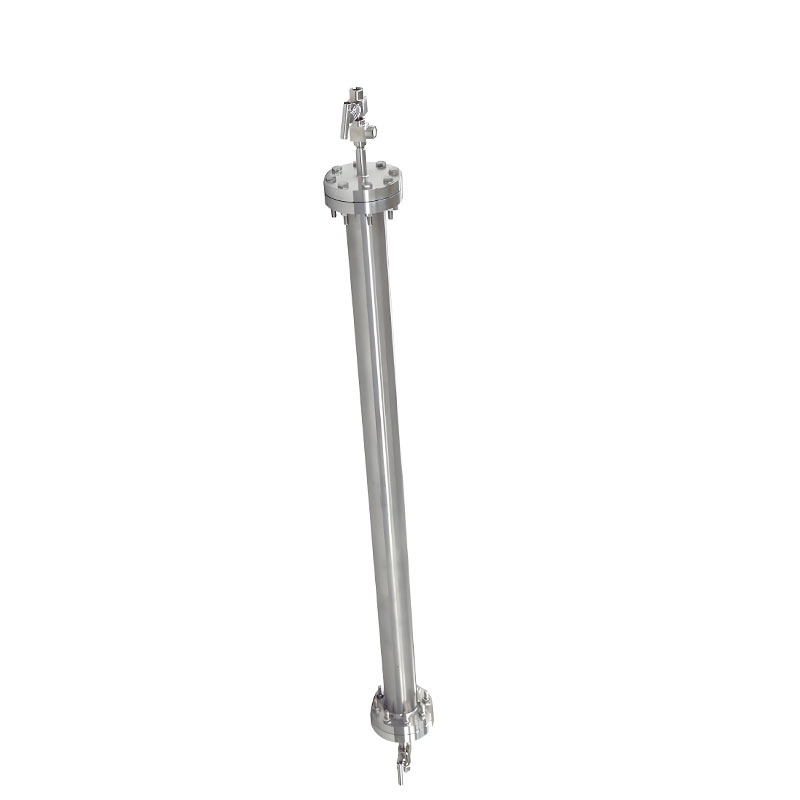

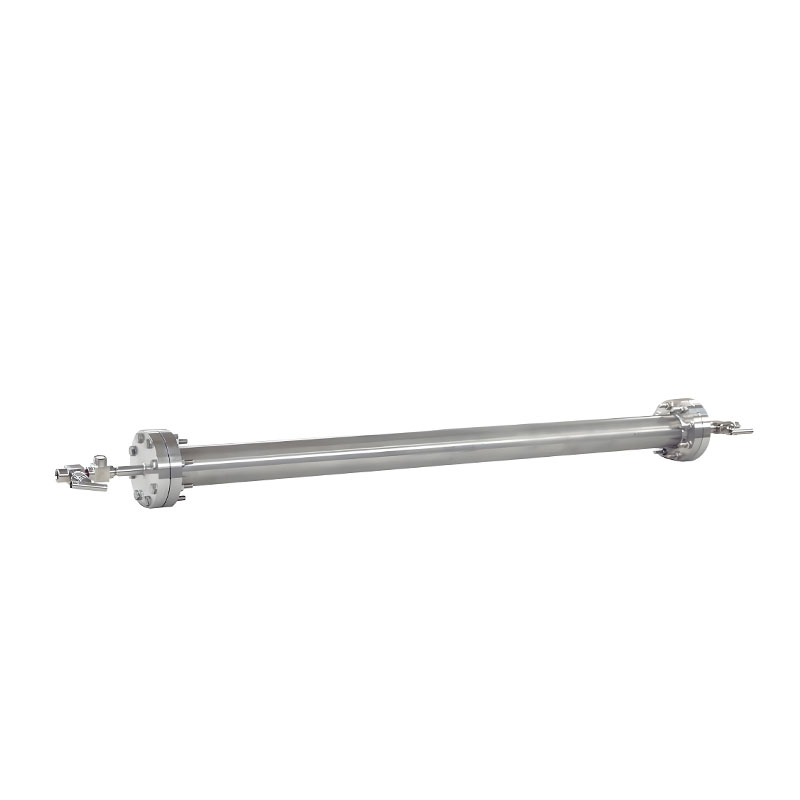

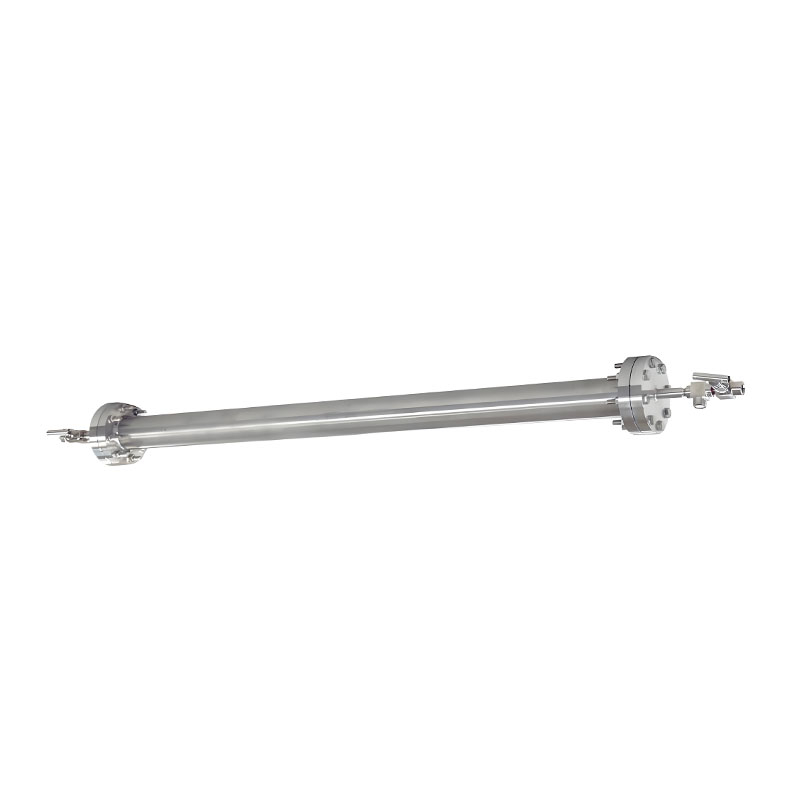

SS310S Alloy Steel Furnace Tube

    The SS310S material tubular container can be used in oxidizing, inert, or reducing gas environments at temperatures up to 900°C for processing special compounds

The SS310S material tubular container can be used in oxidizing, inert, or reducing gas environments at temperatures up to 900°C for processing special compounds. This tube is also suitable for use with CYKY tube furnaces, creating systems for ultra-high vacuum or high-pressure HIP (Hot Isostatic Pressing) applications. It is an ideal container for low-cost research of new materials.



Purchase Information:

If you are interested in our SS310S furnace tube, please contact us for more information and a quote.
Phone: +86 18516380382
Email: Jimmy@cysitech.com
Contact Person: Jimmy Hao
WeChat: +86 18516380382



Technical Parameters:

Product Name

SS310S Alloy Steel Furnace Tube

Outer Diameter

25mm

50mm

60mm

80mm

90mm

100mm

Inner Diameter

20mm

42mm

52mm

70mm

80mm

90mm

Tube Length

Customizable according to customer   requirements

Forming Process

Seamless extrusion molding

Maximum Working Pressure/Temperature

800°C, <10atm (with high-pressure   flange)

900°C in high vacuum environment

1000°C in flowing gas (no load)

Maximum Vacuum Degree

10-6Torr(CF sealing flange)

Optional Accessories

1. Sealing flange

2. Torque wrench to avoid over-tightening   of flange bolts

3. High-pressure relief valve with preset   safety pressure

4. High-temperature pressure transmitter   for pressure reading

Flange Installation

1. Thoroughly clean the copper gasket   before use.

2. Tighten the flange appropriately using   a torque-adjustable wrench.

Notice

1. To extend the life of the tube, use   quartz or alumina crucibles to hold samples instead of placing samples   directly into the tube.

2. Regularly inspect the tube surface   visually. High-pressure containers are consumable items; if deformation is   found, replace the tube.

3. A pressure regulator must be installed   on the cylinder side to adjust the pressure.

4. Designed service life: 2000 hours at   800°C
